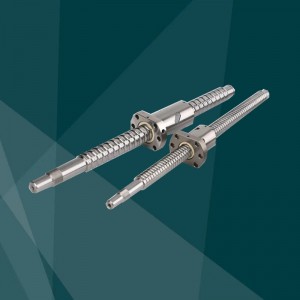

Introduction: M series high-precision ball screw lifter can be widely used in machinery, metallurgy, construction, chemical industry, medical treatment, culture and health and other industries. It can accurately control and adjust the lifting or propulsion height according to certain procedures, and can be directly driven by motor or other power, or manually. The screw lifter is a basic lifting and hoisting component. The bearing capacity is 2.5-120t. The utility model has the characteristics of

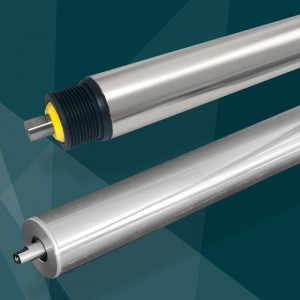

This electric roller type can still be installed to obtain the required torque when the space is extremely limited. With high alloy steel fine grinding gear and planetary transmission structure as the main design, it has many advantages, such as reliable performance, maintenance free, oil free, suitable for small installation space, etc.
Servo planetary reducer is another name for planetary reducer in the industry. Its main transmission structure is: planetary gear, sun gear and inner gear ring. Compared with other reducers, the servo planetary reducer has the characteristics of high rigidity, high precision (within 1 point for a single stage), high transmission efficiency (97%-98% for a single stage), high torque / volume ratio, lifelong maintenance free, etc. Most of them are installed on stepping motor and servo motor to redu
Overview of T series gear steering box: gear steering box, also known as commutator and steering gear, is a power transmission mechanism and a series of reducers, which is widely used in the industrial field. The steering box has been standardized and diversified. The steering box can be operated in both positive and negative directions, and the low-speed or high-speed transmission is stable. When the speed ratio of the steering box is not 1:1, the horizontal axis input and vertical axis output are deceleration, and the vertical axis input and horizontal axis output are acceleration.
Technical parameters: Power: 0.018kw ~ 4.94kw torque: 6.95 ~ 46.8nm transmission ratio: 1:1, 2:1 gear: the gear is made of high-quality and high-purity diamond 20CrMnTiH carburizing, quenching and grinding; The steering box shell is made of aluminum alloy; Main shaft: the shaft adopts alloy steel for conditioning and high suspended load capacity; Bearing: Bearing with heavy load capacity; Oil seal: oil seal with double sealing lips, capable of preventing dust and oil leakage; Lubrication: the use of proper lubricating oil can give play to the efficiency of the steering gear and improve its operation life.
HD series bevel gear steering box introduction: HD series bevel gear steering box is also called SP series bevel gear commutator. The box body is designed scientifically, and the positive hexahedron is suitable for installation in different directions, which facilitates the use and installation of customers; Hd/sp series gear boxes are made of high-quality low-carbon alloy structural steel. After carbon quenching heat treatment, grinding and running in, the hard tooth surface closed transmission with high precision is realized. The scientific design scheme and high-quality production materials make hd/sp series steering box have strong bearing capacity, low noise and stable transmission.
A) When the output shaft diameter of No. 1, No. 2 and No. 3 main bodies is between 018.028, the reducer main bodies are all made of aluminum alloy ad012. When the output shaft diameter of 4, 5 and 6 main bodies is between 032.050, the reducer main bodies are made of cast iron F020. B) The 1/2/3 gear is processed by precision hobbing, and the gear processing accuracy grade is 2.3. The gear is made of 20CrMo and tempered to h4c21., Then it is subject to high frequency heat treatment to hr040.43.
Overview 1.1 product features KM series hypoid gear reducer is a new generation of practical product newly developed by our company. It has the following main features: 1. it adopts hypoid gear transmission with large transmission ratio; 2. large output torque, high transmission efficiency, energy saving and environmental protection @ 3. Made of high-quality alloy, it is the lightest and has no inducement. 4. the transmission is flat and 0. the sound is small, which is suitable for long-term continuous work in harsh environments; 5. beautiful and easy to use. Small volume. 6. it can be installed in all directions. It is widely used and easy to use·
Product features: after years of practical use, MB stepless variable speed machine has proved to have a unique style among many stepless variable speed machine families. Due to its design structure, convenient operation, stable transmission and other characteristics, this series of products are widely used in food machinery, printing, paper machinery, rubber, plastic machinery, ceramic machinery Pharmaceutical machinery and various working production lines require variable process parameters and continuous changes in speed. They also have the ability to explore the working speed of the machine during the trial production of new products.
For the features and uses of WB series micro cycloid pin gear reducer, please refer to X Series cycloid pin gear reducer. The difference is that the model is smaller and the power is smaller. This series of reducer has all the characteristics of ordinary reducer. It is not easy to leak oil because it is lubricated with grease. At the same time, according to the needs of users, it can be installed and used in any direction and at any angle.
